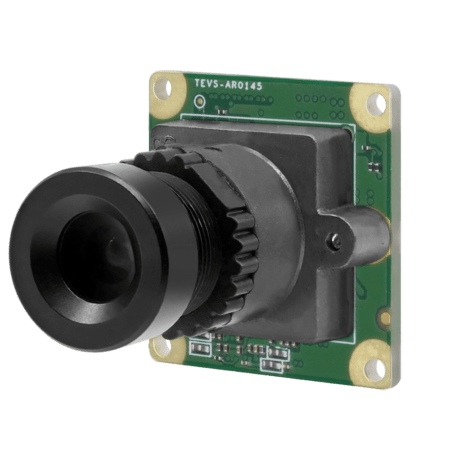

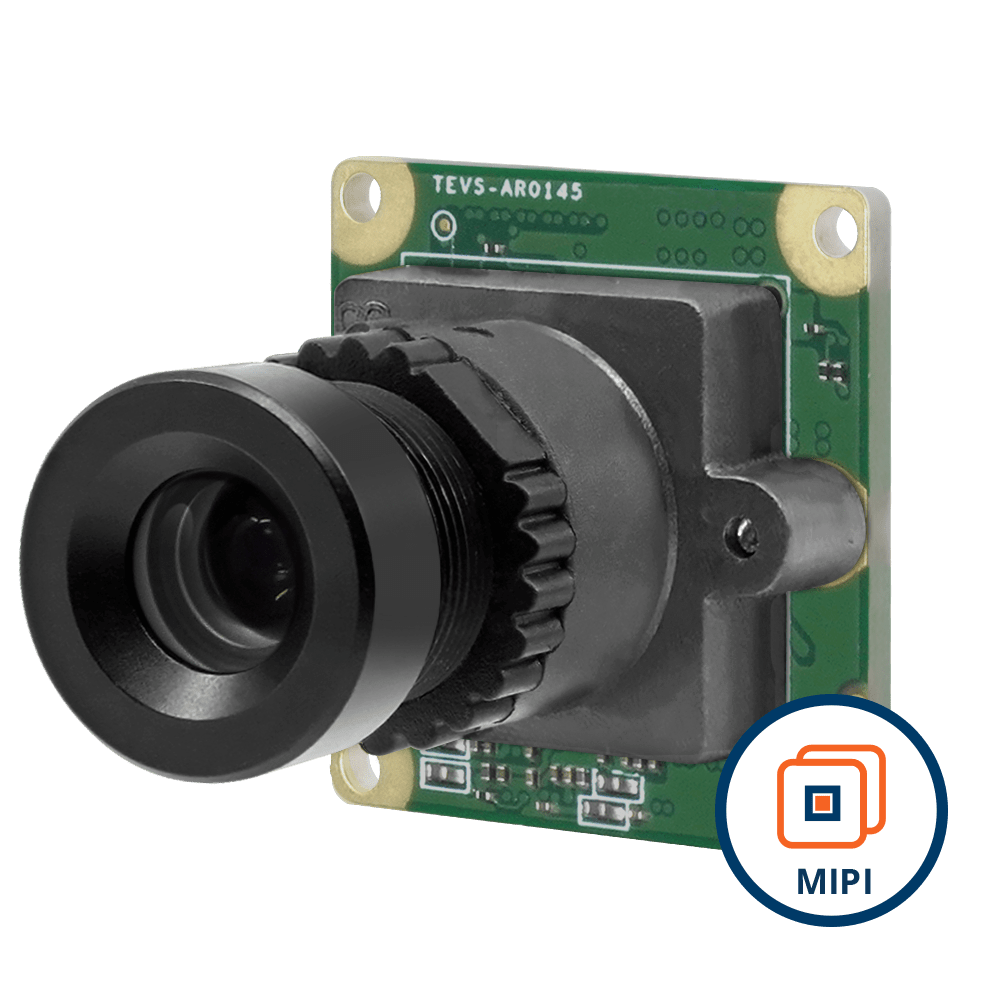

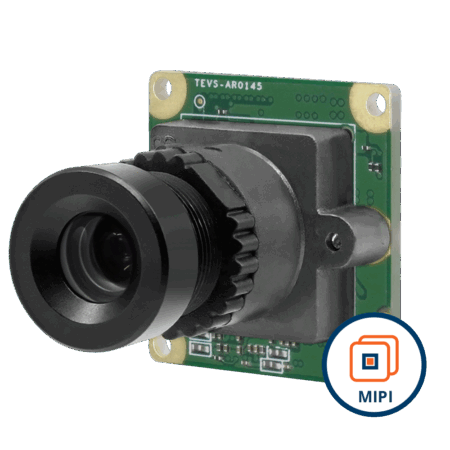

TEVS-AR0145 Narrow FOV Right

TEVS-AR0145-M-S31-IR

SKU: TEVSAR0145MS31IR Category: MIPI-CSI2 Sensors

MIPI-CSI2 Sensor onsemi AR0145 1MP Mono Global Shutter with ISP + 31 Degree M12 Lens with IR-Cut Filter

More Information

Product Brief

Quantity	Discount (%)	Price
1 - 99	—	$100.00
100 - 249	5 %	$95.00
250 - 499	10 %	$90.00
500+	15 %	$85.00

2 in stock (can be backordered)

Specifications

Additional information

Camera Information

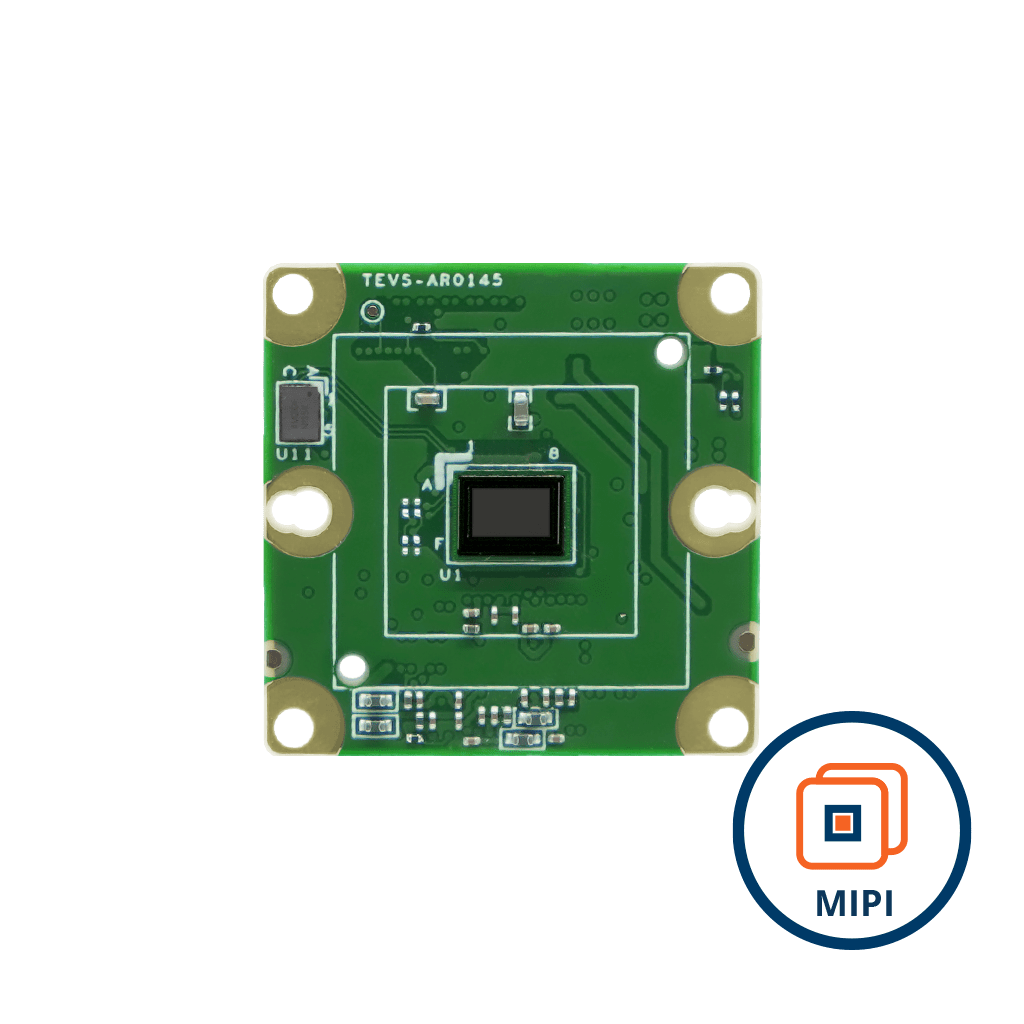

CMOS Sensor	onsemi AR0145
Active Pixels	1280 (H) x 800 (V) = 1MP
Pixel Size	2.8 μm x 2.8 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	38 dB
Input Clock Range	48 MHz
Optical Format	1/4.3” (Diagonal 4.23 mm)
Shutter Type	Global Shutter
Chromaticity	Mono
Maximum Frame Rate (YUV422-UYVY)	1280 x 800 @ 115 fps 1280 x 720 @ 115 fps 640 x 480 @ 115 fps
Output Format	YUV422-UYVY

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	1280 x 800 @ 115 fps ≤ 523 mW
SW Standby Power	≤ 32 mW Standby
HW Standby Power	≤ 21 mW Standby

Software Support

Platform Support	NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	8 mm
Aperture	F1.8
Module D-FOV	31.2° ± 5%
Module H-FOV	26.3° ± 5%
Module V-FOV	16.3° ± 5%
TTL	26.2 mm
BFL	7.8 mm
MOD	0.3 m
Distortion	< – 5.03%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 12.7(D) mm
Weight	≤ 3 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVS-AR0145 Block Diagram

Spectral Characteristics

AR0145 Spectral Characteristics
